Ultrasonic welding machines are industrial devices that join compatible materials using high-frequency mechanical vibrations, pressure, and carefully controlled process conditions. They are commonly used for joining thermoplastics and certain metal components in manufacturing environments.
Context
The process developed from advances in ultrasonics and industrial joining technology. As manufacturers sought repeatable methods for assembling small components and plastic parts, ultrasonic welding became an alternative to techniques involving mechanical fasteners, adhesives, or conventional heat-based processes.
Although the phrase “without heat” is often used to describe ultrasonic welding, it needs clarification. The process generates localized heat through friction and material deformation at the joining interface. The important distinction is that the heat is generated within the joint rather than supplied mainly by an external heating source.
An ultrasonic welding machine typically contains a power supply, an electronic generator, a transducer, a booster, a horn, and a clamping system. The generator converts electrical energy into a high-frequency signal, and the transducer converts that signal into mechanical vibrations. These vibrations travel through the tool to the parts being joined.
How ultrasonic welding works
The machine holds the components in position while the horn applies vibrations and pressure. At the contact interface, the vibrations generate localized energy that allows compatible materials to bond. The machine then maintains pressure for a controlled period while the joint stabilizes.
The operating sequence generally includes these stages:
Part positioning: The components are placed in a fixture that supports alignment.
Clamping: The machine applies pressure to hold the parts together.
Vibration: The horn transfers high-frequency mechanical energy into the joining area.
Bond formation: Localized heating, deformation, and material interaction create the joint.
Holding and cooling: Pressure is maintained while the joint stabilizes.
Inspection: The completed assembly is examined according to the required quality criteria.
The exact sequence and settings depend on the materials, component geometry, machine design, and joining requirements.
Materials used in ultrasonic welding

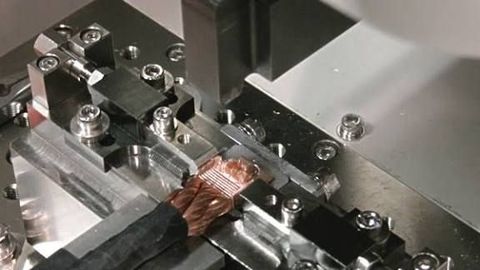

Ultrasonic welding is particularly common for thermoplastics, including materials used in housings, packaging components, and molded assemblies. Certain metal-to-metal ultrasonic welding processes are also used for applications such as electrical connections and thin metal foils.
However, not every material combination is suitable. Material compatibility, thickness, surface condition, component shape, and joint design influence whether a reliable bond can be formed.
| Material category | Common applications | Important consideration |
|---|---|---|
| Thermoplastics | Housings, molded parts, enclosures | Polymer compatibility and joint design |
| Plastic films | Flexible packaging and thin layers | Film thickness and sealing requirements |
| Nonwoven materials | Selected textile and filter assemblies | Layer structure and material composition |
| Thin metals | Electrical tabs, foils, and selected conductors | Metal properties, surface condition, and vibration control |
| Dissimilar materials | Specialized joining applications | Compatibility must be evaluated for the specific combination |
Importance
Ultrasonic welding matters because many manufactured products contain small components that need to be joined accurately and repeatedly. In suitable applications, the process can reduce dependence on separate joining materials and mechanical fasteners. It can also support automated assembly lines where the same joining sequence is performed across many components.
The technology is used in areas such as electronics, automotive component manufacturing, medical-device production, packaging, household products, and selected textile applications. Its suitability varies by product design and the required mechanical, electrical, or environmental performance of the finished joint.
Manufacturing challenges addressed by ultrasonic welding
One important application is joining thermoplastic components without introducing a separate adhesive. This can simplify an assembly when the materials and joint geometry are compatible with the process. It does not mean that adhesives are unsuitable for all applications or that ultrasonic welding can replace every fastening method.
Another application is the joining of small components that require controlled positioning. Fixtures, automated handling equipment, and programmable welding settings can help maintain consistency between production cycles.
The process may also reduce the need for additional joining components. Nevertheless, the overall manufacturing system still requires suitable tooling, inspection procedures, equipment maintenance, and operator training.
Limitations and operating considerations
Ultrasonic welding is not appropriate for every product. Parts with unsuitable geometry, incompatible materials, excessive thickness, or sensitive internal components may be difficult to join using this method.
Important considerations include:
Joint design: Energy-directing features or suitable contact surfaces may be needed for plastic components.
Material properties: Different polymers and metals respond differently to vibration and pressure.
Process control: Vibration amplitude, applied force, welding duration, and energy settings affect the result.
Equipment condition: Worn tooling or incorrect alignment can affect joint consistency.
Quality verification: A joint's appearance alone may not demonstrate its strength or long-term reliability.
These factors make engineering evaluation an important part of selecting and applying ultrasonic welding.
Recent Updates
Developments in ultrasonic welding during recent years have generally focused on improved process monitoring, automated controls, production data collection, and integration with manufacturing systems. Rather than representing a complete change in the underlying technology, these developments build on established ultrasonic joining principles.
Modern machines may include digital control panels, programmable recipes, sensors, and systems that record process measurements. Depending on the model, operators can monitor parameters such as vibration amplitude, energy input, welding duration, displacement, and applied force.
Automation and process monitoring
Automated ultrasonic welding systems can be integrated with robotic handling, production conveyors, and programmable manufacturing equipment. This allows components to move through repeatable assembly sequences with reduced manual handling.
Some systems monitor several process variables during each cycle. Recorded information can help identify unusual cycles and support investigation when a joint does not meet specified requirements. However, monitoring data alone cannot establish that every joint is reliable; suitable validation and inspection procedures remain necessary.
Digital controls and equipment integration
Industrial manufacturers increasingly use connected equipment to collect production data and coordinate assembly processes. Ultrasonic welding systems may be linked with programmable logic controllers, manufacturing execution systems, or factory data platforms.
The available functions depend on the equipment configuration. Connectivity, automated inspection, and digital records can support process management, but their presence does not automatically establish compliance with a particular quality standard or guarantee a defect-free joint.
Laws or Policies
Ultrasonic welding machines may be subject to different regulatory requirements depending on their location, intended use, operating environment, and integration into a larger production system. Requirements can concern machinery safety, electrical equipment, electromagnetic compatibility, occupational exposure, guarding, and the safety of automated production cells.
There is no single worldwide rule that covers every ultrasonic welding machine and every application. Manufacturers, equipment integrators, and industrial operators need to identify the rules applicable to their particular equipment and workplace.
Machinery and electrical safety
Common safety considerations include protection from moving parts, electrical hazards, unexpected machine movement, and unsafe access to the welding area. Equipment may require interlocks, protective enclosures, emergency stopping functions, and documented operating procedures according to its design and applicable requirements.
Ultrasonic systems also generate high-frequency sound and mechanical vibration. Workplace assessments may therefore need to consider audible noise, airborne sound at ultrasonic frequencies, and exposure associated with adjacent equipment. Appropriate guarding, maintenance, training, and protective measures depend on the assessed hazards.
Product and workplace requirements
When ultrasonic welding is used to manufacture regulated products, additional requirements may apply to the finished product and its manufacturing process. For example, an assembly intended for a medical or electrical application may require documented material controls, process validation, traceability, and product-specific testing.
These obligations do not arise solely because ultrasonic welding is used. They depend on the finished product, the intended application, and the regulatory framework that governs it. Technical standards and conformity assessments should therefore be considered in their specific context rather than treated as universal approvals.
Tools and Resources
Several technical resources can help explain ultrasonic welding equipment, process settings, and joint evaluation.
Equipment manuals and technical specifications
Manufacturer documentation commonly describes the machine's operating range, compatible tooling, control functions, maintenance requirements, and safety precautions. These documents also identify limitations that may not be apparent from a general description of ultrasonic welding.
Material data sheets
Material data sheets provide information about polymer or metal properties that may affect joining performance. Relevant characteristics can include melting behavior, stiffness, thickness, surface condition, and compatibility with other materials. Actual suitability still depends on the machine, component geometry, and process trials.
Process-monitoring instruments
Depending on the system, useful instruments and records may include:
Force and displacement monitoring
Energy and time measurements
Vibration amplitude monitoring
Temperature measurement where appropriate
Tensile or pull testing equipment
Visual inspection tools
Dimensional inspection instruments
The correct combination depends on the product and the failure modes being evaluated. Testing methods should reflect the intended function and acceptance criteria of the joint.
Technical standards and safety documentation
International and regional standards organizations publish documents covering machinery safety, electrical safety, material testing, and quality management. Relevant documents can be identified through official standards catalogues and applicable regulatory guidance.
A standard's relevance depends on its scope, current edition, and relationship to the particular equipment or finished product. A machine's use of ultrasonic technology does not by itself establish compliance with every potentially relevant standard.
FAQs
What is an ultrasonic welding machine used for?
An ultrasonic welding machine joins compatible materials using high-frequency mechanical vibrations and pressure. Common applications include thermoplastic components, flexible packaging layers, selected nonwoven materials, and certain thin-metal assemblies.
Does ultrasonic welding join materials without heat?
No. Ultrasonic welding generates localized heat at the joining interface through mechanical vibration and material interaction. It generally does not rely on a separate external heating element at the joint, but heat is still part of the bonding process.
Can ultrasonic welding machines join metal and plastic?
Some ultrasonic systems are designed for particular metal applications, while others are intended for thermoplastics. Joining metal directly to plastic requires specific material and process considerations, and compatibility cannot be assumed for every combination.
What factors affect ultrasonic welding quality?
Material compatibility, joint geometry, vibration amplitude, applied pressure, welding duration, tooling condition, and component alignment can affect the result. Suitable inspection and mechanical testing may be needed to assess whether a joint meets its intended requirements.
Is ultrasonic welding suitable for automated manufacturing?
Yes, it can be integrated into automated assembly systems when the components, process, and equipment are suitable. Sensors and digital controls can support repeatable operation, although process validation and appropriate safety measures remain important.
