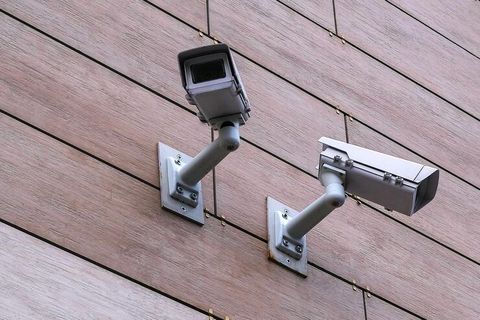

Motion detection cameras are surveillance cameras designed to identify movement within a defined area and, depending on the system, record video, trigger an alert, or activate another connected device. They combine a camera with a motion detection method so that the system can distinguish periods of activity from periods when a monitored scene remains relatively unchanged.
Context
The concept developed from conventional surveillance systems that continuously recorded or required people to watch camera feeds. Motion detection introduced a way to focus attention on changes occurring within a scene. Modern systems can go further by analyzing whether movement is associated with a person, vehicle, animal, or another object.
Motion detection cameras are available in several forms, including indoor cameras, outdoor cameras, network cameras, battery-powered cameras, and cameras integrated into larger video surveillance systems. Their capabilities depend on the sensor technology, image-processing system, installation environment, and software used.
How motion detection works
Traditional motion detection often compares changes between successive video frames. If enough pixels change within a defined region, the camera can classify the change as motion and initiate a programmed response.
More advanced cameras can combine video analysis with technologies such as passive infrared sensing, radar, object classification, or artificial intelligence. These approaches can help distinguish meaningful movement from some environmental changes, although no detection method eliminates every false alert.
| Detection method | Basic principle | Common consideration |
|---|---|---|
| Video-based detection | Compares changes between video frames | Can react to lighting or environmental changes |
| PIR detection | Detects changes in infrared radiation | Useful for detecting warm moving objects |
| Radar detection | Uses radio waves to detect movement or distance | Can provide additional information about movement |
| AI-based detection | Classifies objects or activity in video | Requires suitable processing and configuration |
| Dual-sensor detection | Combines two detection methods | Can reduce some unwanted triggers |
Importance
Motion detection cameras can help reduce the amount of video that requires manual review. Instead of treating every moment as equally important, a system can mark periods when movement or a defined event occurs.
This can be relevant in homes, offices, warehouses, parking areas, industrial facilities, entrances, and other locations where activity needs to be observed. The same technology can also be used for non-security purposes, such as monitoring equipment areas or detecting movement in restricted zones.
Security and monitoring challenges
A conventional camera may continue recording when nothing is happening. Continuous recording can generate substantial amounts of video, making particular events more difficult to locate manually.
Motion detection changes this workflow by generating an event when the camera detects activity. Depending on the configuration, the system may:
- Start or highlight a recording.
- Send an application notification.
- Activate an alarm or connected device.
- Mark an event in recorded footage.
- Trigger another camera or system component.
- Store event metadata for later searching.
Motion detection is not the same as identifying a security threat. A tree moving in strong wind, changing shadows, headlights, insects, or rain may trigger some detection systems. Configuration and environmental conditions therefore have a major influence on results.
Choosing a detection approach
The appropriate detection method depends on the monitored environment. An indoor hallway with stable lighting presents different challenges from an outdoor parking area exposed to sunlight, weather, vehicles, and vegetation.
The field of view is also important. A camera pointed toward a busy road may detect frequent movement that is unrelated to the area being monitored. Motion zones can help restrict detection to particular parts of the image.
Recent Updates
Motion detection cameras have increasingly incorporated video analytics and object classification. Instead of treating every visible change as equivalent, newer systems can analyze characteristics of moving objects and create events based on categories such as people or vehicles.
ONVIF Profile M supports metadata and events for analytics applications, including generic object classification and metadata relating to vehicles, human faces, and human bodies. It can also support event handling for applications such as object counting and other analytics.
Another development has been stronger attention to interoperability and cybersecurity. ONVIF announced that support for Profile S would end and recommended Profile T as its successor because some Profile S authentication mechanisms no longer align with current cybersecurity recommendations. Profile T supports advanced video streaming, metadata, and events such as motion and tampering detection.
AI-based detection
Artificial intelligence is increasingly used to analyze video locally on cameras or through connected computing systems. AI-based analytics can classify objects, identify movement patterns, and create more specific event categories than basic pixel-change detection.
This does not mean that every AI camera performs the same functions. Object categories, processing methods, detection distances, lighting requirements, and available analytics vary between systems. Users should therefore distinguish between general motion detection and specific analytics capabilities.
Edge processing and connectivity
Some cameras perform detection directly on the camera rather than sending every frame to a remote server. This is commonly called edge processing. It can reduce the amount of video that needs to be transmitted for certain analytics functions.
Network cameras may also integrate with video management software, storage systems, access control systems, and other connected equipment. ONVIF profiles provide standardized interfaces intended to improve interoperability between conformant products.
Laws or Policies
Camera deployment is influenced by several types of rules, including privacy regulations, data-protection requirements, surveillance rules, workplace policies, and technical standards. The exact requirements depend on the location, purpose of monitoring, type of information collected, and people who may be recorded.
Privacy becomes particularly important when cameras capture identifiable individuals. Additional considerations may apply when facial recognition, license-plate recognition, biometric identification, audio recording, or automated profiling is involved.
In India, the Digital Personal Data Protection Act, 2023 establishes a framework concerning the processing of digital personal data and includes provisions relating to the rights and obligations associated with such processing. The Act states that its provisions come into force through government notification, with different provisions potentially commencing at different times.
Technical requirements also apply to certain camera equipment. India's Bureau of Indian Standards has published requirements relating to CCTV cameras under the compulsory registration framework, including essential requirements associated with CCTV security.
The BIS framework also includes standards for video surveillance systems used in security applications. The IS 16910 series covers areas including system requirements, video transmission, interfaces, application guidance, and image-quality performance.
These rules should not be treated as a single universal checklist. Organizations using surveillance cameras need to consider the specific privacy, data-protection, employment, property, and technical requirements applicable to their situation.
Tools and Resources
Several resources can help readers understand motion detection cameras and connected surveillance systems.
Camera configuration tools
Most network cameras include configuration interfaces for adjusting motion zones, sensitivity, detection thresholds, recording behavior, notifications, and related settings. These controls allow a monitored area to be divided into zones rather than treating the entire image as equally important.
A basic configuration record can document:
- Camera location and viewing direction.
- Detection area.
- Detection method.
- Sensitivity level.
- Object categories, where available.
- Recording schedule.
- Notification rules.
- Storage duration.
- Authorized users.
ONVIF resources
ONVIF provides information about profiles and product conformance for IP-based physical security equipment. Profile T covers advanced video streaming and includes standardized support for events such as motion and tampering detection. Profile M addresses metadata and analytics events.
ONVIF also maintains a conformant-products database. Its documentation explains that official conformance is associated with registered products supporting the relevant profile.
Video surveillance standards
BIS resources can help readers locate Indian Standards and related conformity information. Its "Know Your Standard" platform allows users to search standards using an Indian Standard number or a product-related keyword.
For broader technical research, surveillance-system standards can help explain image quality, transmission, system architecture, and installation considerations.
Motion detection logs
A simple event log can also be useful when adjusting a system. Recording the time, detected event, environmental conditions, and whether the alert was relevant can help identify recurring false triggers and determine whether detection zones need adjustment.
FAQs
How do motion detection cameras work?
Motion detection cameras identify changes within a monitored area using methods such as video-frame analysis, infrared sensing, radar, or combinations of these technologies. When configured conditions are met, the camera or connected system can record the event or generate an alert.
What is the difference between motion detection and AI detection?
Basic motion detection generally identifies changes or movement within an image. AI-based detection can analyze video further and classify objects or events, such as people or vehicles. The exact capabilities depend on the camera and its analytics system.
Are outdoor motion detection cameras affected by weather?
Outdoor cameras can be affected by rain, snow, fog, wind-blown vegetation, changing sunlight, shadows, and other environmental conditions. Appropriate camera placement, detection zones, sensitivity settings, and suitable detection technology can influence how these conditions affect alerts.
Can motion detection cameras record continuously?
Yes. Motion detection and recording are separate functions, so a camera can be configured for continuous recording while also marking or generating events when movement occurs. Other systems may record only when a defined motion or analytics event is detected.
Are motion detection cameras subject to privacy rules?
Potentially. Cameras that capture identifiable people can involve personal-data and privacy considerations, particularly when monitoring public areas, workplaces, residential spaces, or using biometric analytics. Applicable requirements depend on the jurisdiction, purpose, and type of data being processed.
Conclusion
Motion detection cameras combine video surveillance with technologies that identify movement or defined events within a monitored area. Detection can rely on video analysis, infrared sensing, radar, AI-based classification, or combinations of these methods. Recent developments have expanded analytics, interoperability, edge processing, and cybersecurity capabilities, while privacy and data-protection considerations remain important. Camera performance depends on the detection method, environment, configuration, image quality, and applicable technical and legal requirements.
