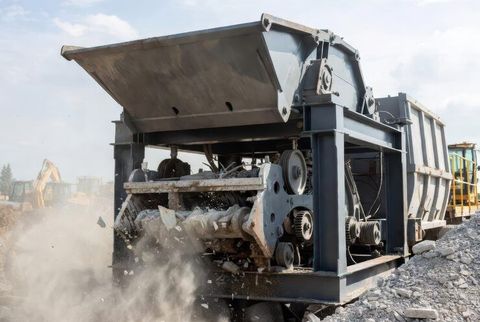

A stone crusher machine is equipment used to reduce large rocks, stones, concrete, and other mineral materials into smaller pieces. Crushing is an important stage in many material-processing operations because raw rock often needs to be reduced to a particular size before it can be screened, transported, processed further, or incorporated into construction materials.
Context
Stone crushing developed alongside the growth of mining, road construction, quarrying, and infrastructure development. Earlier crushing methods relied heavily on manual work and relatively simple mechanical arrangements. Modern crushing plants use mechanical crushers, feeders, screens, conveyors, and control systems to process materials in a more organized sequence.
The term stone crusher machine covers several types of equipment rather than one specific machine. Jaw crushers, cone crushers, and impact crushers use different mechanisms and are suited to different stages and material characteristics.
How stone crushing works
The basic crushing process begins when larger material enters a crusher through a feed opening. Mechanical force is then applied to break the material into smaller pieces.
Depending on the crusher type, this force may come from compression, impact, or a combination of mechanical actions. The resulting material can then pass through screening equipment to separate different size ranges.
A typical crushing arrangement may contain:
- A feeder to regulate material entering the crusher
- A primary crusher for initial size reduction
- A secondary or tertiary crusher for further reduction
- Screens for separating material by size
- Conveyors for moving processed material
- Dust-control equipment where required
The exact arrangement depends on the material, required output sizes, production process, and site conditions.
Importance
Stone crushing is relevant to construction, mining, quarrying, road development, concrete production, and other industries that use processed mineral materials. Crushed stone can be used as aggregate in roads, foundations, concrete, drainage applications, and other construction activities.
The type of crusher affects the size, shape, and characteristics of the resulting material. Selecting a crushing method therefore involves more than considering the size of the machine. Feed material, hardness, abrasiveness, moisture, desired product size, and the number of processing stages can all influence the arrangement.
Understanding the main crusher types
Jaw, cone, and impact crushers perform different roles within crushing operations.
| Crusher type | Main crushing principle | Common role | Typical material consideration |
|---|---|---|---|
| Jaw crusher | Compression between a fixed and moving jaw | Primary crushing | Large, hard feed material |
| Cone crusher | Compression between mantle and concave | Secondary or tertiary crushing | Hard and abrasive materials |
| Impact crusher | Impact from a rotor or other striking mechanism | Primary, secondary, or recycling applications | Materials where particle shape is important |
These descriptions are general. Actual applications vary according to machine design, configuration, feed characteristics, and operating conditions.
Jaw crusher
A jaw crusher generally uses two crushing surfaces, with one jaw moving toward and away from a fixed jaw. Material is compressed between the surfaces until it breaks into smaller pieces.
Jaw crushers are commonly associated with primary crushing because their feed openings can accommodate relatively large pieces of rock. They may be used with materials such as quarry rock, concrete, and other hard mineral materials.
Important characteristics include the feed opening, discharge setting, crushing chamber design, and mechanical configuration. The discharge setting influences the approximate size of material leaving the crusher.
Cone crusher
A cone crusher reduces material through compression between a rotating or gyrating crushing member and a stationary surface. The material enters the crushing chamber and is progressively reduced as it moves through the chamber.
Cone crushers are frequently used after primary crushing, particularly when further size reduction is required. They can also be used in later stages where a controlled product size is required.
Operating conditions can be influenced by feed size, material hardness, chamber configuration, and discharge setting. Maintaining a suitable feed arrangement is important because uneven feeding can affect the crushing process.
Impact crusher
An impact crusher uses mechanical impact to break material. Depending on the design, material may be accelerated by a rotor and struck against impact surfaces or other material.
Impact crushers are used in different crushing stages and can be applied to certain quarry materials, construction materials, and recycled concrete. They can produce particle shapes that are useful for particular aggregate applications.
Material characteristics matter when considering impact crushing. Highly abrasive materials can cause greater wear on components, so the properties of the feed material need to be considered when planning an application.
Recent Updates
Stone crushing technology has increasingly focused on automation, energy management, remote monitoring, dust control, and improved process coordination. These developments are part of a broader movement toward more connected and measurable industrial equipment.
Modern crushing plants may use sensors and control systems to monitor operating conditions such as equipment load, material flow, temperature, and other parameters. Automation can help operators observe process conditions and adjust equipment according to the plant configuration.
Automation and monitoring
Digital monitoring can provide information about equipment operation and maintenance requirements. Depending on the system, data may be collected from individual machines or from several components across a crushing and screening plant.
Remote monitoring can also reduce the need for operators to remain close to certain equipment during particular operating activities. However, automation does not remove the need for appropriate guarding, inspection, training, and operating procedures.
Dust-control developments
Dust management has received continued attention because crushing stone and concrete can generate respirable crystalline silica. OSHA identifies crushing as an activity that can generate silica-containing dust and specifies engineering and work-practice controls for covered tasks in its construction standard. These include water sprays or mist at dust-generating points and operator isolation through a ventilated booth or remote-control station.
Water-based suppression, ventilation, enclosure, and appropriate housekeeping can form part of a site's dust-control approach. The appropriate measures depend on the material, equipment, workplace, and applicable regulations.
Machinery regulation
Regulatory requirements for machinery are also evolving. In the European Union, Regulation (EU) 2023/1230 establishes health and safety requirements for machinery and is scheduled to apply from January 2027, with some provisions applying earlier. The regulation covers machinery design, construction, and related safety requirements.
This does not mean that every stone crusher around the world follows the same regulatory framework. Machinery requirements remain dependent on the jurisdiction in which equipment is manufactured, placed on the market, or operated.
Laws or Policies
Stone crusher machines can be affected by several categories of rules, including machinery safety, workplace health, environmental protection, noise, dust emissions, waste processing, and land-use requirements. The exact requirements vary between jurisdictions and between different types of crushing sites.
Dust control is an important regulatory consideration where stone or concrete processing can create respirable crystalline silica. For example, OSHA's construction standard includes specific engineering and work-practice controls for crushing machines. The measures include water spray or mist systems at crusher and material-transfer points, along with operator isolation in specified circumstances.
Workplace requirements can also address machine guarding, emergency stopping systems, access around moving components, maintenance procedures, and worker training. Environmental rules may additionally address airborne dust, noise, water discharge, waste materials, and operating permits.
Safety and environmental considerations
A crushing operation may involve several potential hazards, including moving machinery, falling material, stored mechanical energy, noise, vibration, and airborne dust. Controls should therefore consider the complete processing system rather than the crusher alone.
Common considerations include:
- Machine guarding around moving components
- Controlled access to operating areas
- Emergency-stop arrangements
- Lockout and isolation procedures during maintenance
- Dust suppression or collection
- Noise and vibration management
- Safe conveyor access
- Inspection and maintenance procedures
Applicable rules should be checked with the relevant regulatory authority because requirements can differ significantly between locations and types of operations.
Tools and Resources
Several resources can help readers understand stone crusher machines and crushing processes. Equipment manuals can provide information about operating limits, maintenance intervals, component identification, and manufacturer-specific procedures.
Crushing and screening calculations
Basic calculations can help explain how material moves through a crushing plant. Feed size, discharge size, throughput, reduction ratio, and screening efficiency are common concepts used when evaluating a crushing process.
A simplified reduction ratio can be expressed as:
Reduction ratio = Feed size รท Product size
This is a simplified representation rather than a complete method for designing a crushing circuit. Actual performance depends on many additional factors.
Technical documentation
Useful technical resources can include:
- Crusher operating manuals
- Equipment safety documentation
- Material specifications
- Aggregate testing standards
- Dust-control guidance
- Machinery regulations
- Maintenance records
- Production and inspection logs
For workplace dust considerations, OSHA publishes specific guidance covering crushing machines and respirable crystalline silica. Its materials explain engineering controls and work practices relevant to covered operations.
Choosing a crushing arrangement
Understanding the material is central to planning a crushing process. Relevant characteristics can include:
- Feed size
- Material hardness
- Abrasiveness
- Moisture content
- Desired product size
- Required particle shape
- Required production rate
- Number of crushing stages
A jaw crusher may be used for initial size reduction, while cone or impact crushers may be incorporated later depending on the material and desired product characteristics.
FAQs
What is a stone crusher machine?
A stone crusher machine is mechanical equipment that reduces large rocks, stones, concrete, and similar materials into smaller pieces. Different crusher designs use compression, impact, or related mechanical forces.
What is the difference between jaw, cone, and impact crushers?
Jaw crushers primarily use compression between two jaws and are commonly associated with initial size reduction. Cone crushers use compression within a conical crushing chamber, while impact crushers break material through mechanical impact. Their applications depend on material characteristics and the required product.
What is a jaw crusher used for?
A jaw crusher is commonly used for primary crushing of relatively large pieces of rock and other hard materials. Its feed opening and adjustable discharge arrangement make it suitable for initial size reduction in many crushing plants.
How does a cone crusher work?
A cone crusher reduces material through compression between a moving crushing member and a stationary surface. Material passes through the crushing chamber while being progressively reduced in size.
Why is dust control important in stone crushing?
Crushing stone, rock, and concrete can generate respirable crystalline silica dust. Appropriate engineering and work-practice controls can reduce worker exposure. OSHA guidance for covered construction activities includes water sprays or mist and operator isolation measures.
Conclusion
A stone crusher machine is part of a broader material-processing system used to reduce rock, concrete, and other mineral materials into manageable sizes. Jaw crushers, cone crushers, and impact crushers use different mechanisms and can perform different roles depending on the material and required product. Current developments increasingly involve automation, monitoring, dust-control systems, and machinery-safety requirements. Crushing operations also need to account for applicable workplace, environmental, and machinery regulations.
